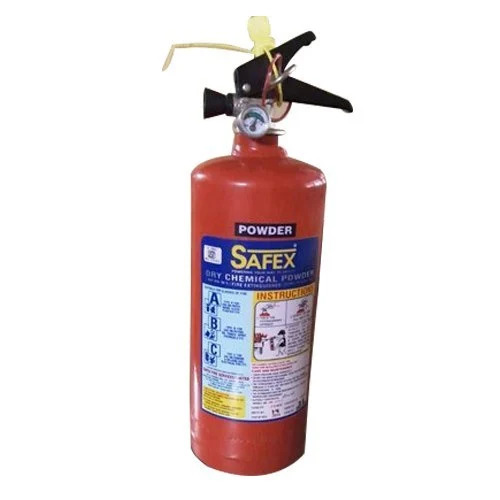

ABC Fire Extinguisher

ABC Fire Extinguisher Specification

Technology
Stored Pressure

Installation Type
Wall mounted

Fire Extinguisher Type
ABC Type (Powder) Fire Extinguisher

Control Type
Manual

Coverage Area
Depends on fire size

Connectivity Type
Standalone

Operating Pressure
15 bar

Fire Class
Class A, B & C

Working Temperature
-30C to +55C

Coating Type
Powder coated

Shape
Cylinder

Features
Easy to operate, corrosion resistant, long shelf life

Mounting Type
Wall mounted

Application
Used for Class A, B, and C fires in residential, commercial, and industrial settings

Diameter
120 mm

Capacity
5 kg

Pressure
15 bar

Shelf Life
5 years

Propellant
Nitrogen gas

Nozzle Type
Squeeze Grip

Discharge Time
15-20 seconds

Weight (Full)
Approx. 8.2 kg

Discharge Range
2 to 3 meters

Maintenance
Requires annual servicing

Colour
Red

Cylinder Material
Mild Steel

ABC Fire Extinguisher Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

ABC Fire Extinguisher About

Parameter	Specification
Type	Dry Chemical Powder (ABC Type)
Capacity	1 kg, 2 kg, 4 kg, 6 kg, 9 kg (most common: 46 kg)
Fire Class Coverage	Class A (Solid), B (Liquid), C (Gas)
Extinguishing Agent	Mono Ammonium Phosphate (MAP) Powder
Discharge Mechanism	Stored Pressure / Cartridge Type
Discharge Time	1320 seconds (varies with capacity)
Discharge Range	2 to 6 meters
Operating Temperature	-20C to +55C
Working Pressure	15 bar to 20 bar (typically 15 bar at 27C)
Test Pressure	35 bar
Body Material	Mild Steel (Powder-Coated / Painted Red)
Valve Type	Squeeze Grip Valve with Safety Pin
Mounting	Wall Mount Bracket / Stand
Approval / Certification	ISI Marked (IS 15683), CE Certified, BIS Approved
Refillable	Yes
Shelf Life	5 years (check label for expiry date)

Advanced Protection for All Fire Classes

This ABC Fire Extinguisher is engineered for versatility, effectively tackling Class A (ordinary combustibles), Class B (flammable liquids), and Class C (gaseous) fires. Its stored pressure technology ensures immediate, powerful deployment, while the squeeze grip nozzle provides user-friendly handling during emergencies.

Durable and Corrosion-Resistant Build

Built from high-quality mild steel and finished with a powder coating, the extinguisher resists corrosion even in harsh conditions. With a sturdy cylinder shape and reliable wall mount, it's ideal for installation in homes, offices, or industrial facilities across varying climates.

Simple Operation and Easy Maintenance

The manual, squeeze grip mechanism allows for swift action during fire outbreaks. Regular annual servicing extends its service life, and the clear 5-year shelf life minimizes replacement cycles. Its standalone design and compact diameter ensure it fits effortlessly in any designated safety area.

FAQ's of ABC Fire Extinguisher:

Q: How do I use the ABC Fire Extinguisher in case of a fire emergency?

A: To use the ABC Fire Extinguisher, pull the safety pin, aim the nozzle at the base of the fire, squeeze the grip to discharge, and sweep the nozzle side to side. Ensure you maintain a safe distance of 2 to 3 meters from the fire during operation.

Q: What types of fires can this extinguisher effectively handle?

A: This extinguisher is designed to combat Class A (ordinary combustibles like paper and wood), Class B (flammable liquids), and Class C (gaseous) fires. It is suitable for use in residential, commercial, and industrial environments.

Q: When does the ABC Fire Extinguisher require maintenance or servicing?

A: The fire extinguisher requires annual servicing by a qualified technician to ensure optimal performance. Regular maintenance assists in preserving its 5-year shelf life and reliability during emergencies.

Q: Where can I install this ABC Fire Extinguisher for optimal access?

A: This extinguisher is designed for wall-mounted installation in easily accessible locations, such as entrances, hallways, kitchens, workshops, or near fire-prone equipment. Proper visibility and proximity are crucial for quick emergency response.

Q: What are the key benefits of choosing this model over others?

A: Key benefits include ease of operation, robust mild steel construction with corrosion resistance, wide fire class coverage, long 5-year shelf life, and simple wall-mounting. Its standalone design means no complex connections are required.

Q: Is the extinguisher difficult to operate for first-time users?

A: No, it offers user-friendly manual control through a squeeze grip nozzle, clear labeling, and straightforward instructions, making it easy even for those with minimal experience.

Q: What propellant and extinguishing technology does this ABC extinguisher use?

A: The extinguisher utilizes nitrogen gas as a propellant and operates using stored pressure technology, which allows for reliable, immediate discharge whenever needed.
