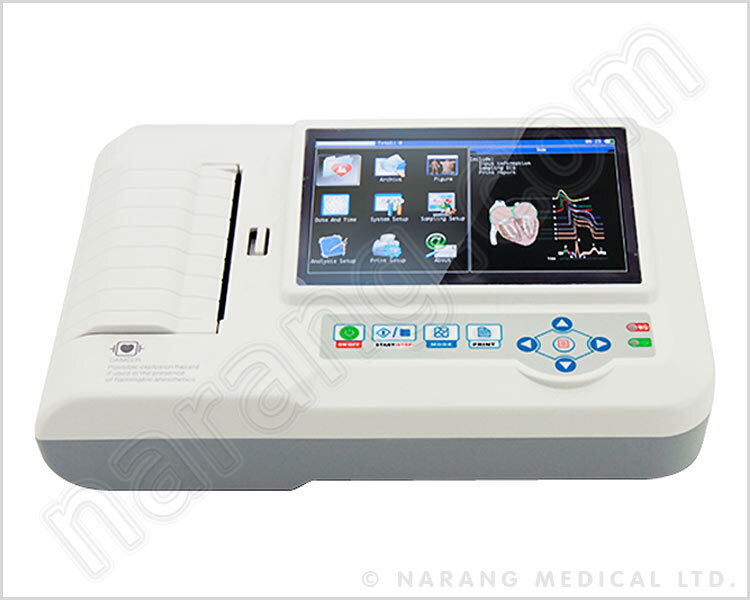

ECG machine

ECG machine Specification

Type
3-channel ECG machine

Main Material
ABS plastic, metal components

Physical Form
Electronic device

Disposable
No

Reusable
Yes

Size
Compact (approximately 300mm x 260mm x 70mm)

Quantity
1 unit per box Boxes

Function
Other

Color
White with gray control panel

Direction Of Use
Connect patient leads and electrodes as per manual, power on, and follow on-screen instructions

Storage Instructions
Store in a cool, dry place, away from direct sunlight

Weight
Approx. 2.5 kg Kilograms (kg)

Display Type
LCD display for waveform visualization and control

Input Impedance
>10 M

Humidity Range
80% RH, non-condensing

Safety Standard
IEC 60601-1 compliant

Paper Width
80mm thermal paper

Power Supply
AC 220V/50Hz or rechargeable battery

Alarms/Indicators
Lead-off, low battery, paper-out

Data Output
Built-in thermal printer, USB port for data transfer

Operating Temperature
5C to 40C

Patient Connection
Standard 10-lead ECG cable

Frequency Response
0.05 - 150 Hz

ECG Channels
3 channels, simultaneous acquisition of 12 leads

Recording Speed
25mm/s, 50mm/s selectable

About ECG machine

The machine works by attaching electrodes to the patients skin, which then capture the hearts electrical signals and translate them into a graphical representation called an ECG or EKG.

Enhanced Diagnostic Performance

Simultaneous acquisition of 12 leads ensures accurate and comprehensive heart monitoring in every session. The 3-channel medical ECG machine delivers clear, reliable waveforms displayed on its LCD screen, aiding in swift and precise diagnoses. Its selectable recording speeds (25mm/s, 50mm/s) and wide frequency response contribute to optimal test quality across diverse patient needs.

Versatile and User-Friendly Operation

This ECG machine is suitable for clinics, hospitals, and home visits due to its compact form (approx. 300mm x 260mm x 70mm) and lightweight build (2.5 kg). Both power supply and rechargeable battery enable continuous operation, while the user-friendly control panel streamlines workflow for clinicians or technicians. All processes, from patient connection to printing, follow intuitive on-screen guidance and alarms.

Durable and Safe Design

Constructed from ABS plastic and metal for durability, this ECG device meets IEC 60601-1 safety standards, ensuring maximum patient and operator protection. The reusable, non-disposable unit is easy to clean with standard disinfectant, and requires no sterilization. Smart alarm indicators for lead-off, low battery, or paper-out conditions enhance safety during operation.

FAQs of ECG machine:

Q: How do I set up and use the 3-channel ECG machine?

A: Begin by connecting the standard 10-lead ECG cable and electrodes to the patient as instructed in the manual. Power the machine using either AC 220V/50Hz or the built-in rechargeable battery. Use the LCD display to navigate on-screen instructions for settings and patient data entry. Once prepared, start the recording process; results will be shown on the screen and can be printed directly or saved via USB.

Q: What are the main benefits of using this ECG machine in clinical practice?

A: This ECG machine provides simultaneous 12-lead acquisition for accurate cardiac assessment, offers immediate printouts, and allows for digital data transfer. Its portability and battery operation make it ideal for various environments, from clinics to ambulances. Built-in alarms and compliance with IEC safety standards ensure reliable and safe use for both patients and staff.

Q: When should I use the built-in thermal printer versus the USB data output?

A: Use the built-in 80mm thermal printer when you need immediate, physical ECG printouts for review or patient documentation. Opt for the USB port when storing digital records, sharing ECG data with electronic medical record systems, or for telemedicine purposes requiring transfer of patient information.

Q: Where can this ECG machine be deployed and stored safely?

A: The device is suited for use in hospitals, clinics, ambulances, and for physician home visits throughout India. For optimal longevity, store the machine in a cool, dry place away from direct sunlight and maintain proper cleaning as outlined in the manual. Its compact form and carrying design make relocation and on-site use convenient.

Q: What is the recommended process for cleaning and maintaining this ECG device?

A: Since sterilization is not required, simply clean the exterior surfaces using a disinfectant compatible with ABS plastic after each use. Ensure connectors and patient leads are wiped gently and allow all components to dry thoroughly before storage. Regular inspection and compliance with the maintenance schedule in the manual will support device performance and longevity.

Q: Can this ECG machine be reused with multiple patients?

A: Yes, the machine is fully reusable. After each patient session, clean the electrodes and cable leads as directed in the manual, ensuring safe use for subsequent patients. Disposable electrodes can be used if infection control protocols require them.
