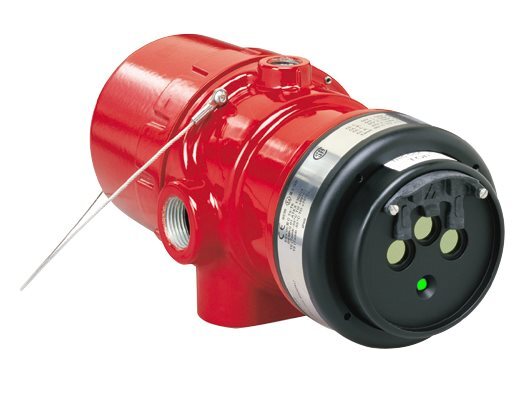

Flame Detector

Flame Detector Specification

Technology
Triple Infrared (IR3) Detection

Coverage Area
Up to 100 square meters

Fire Class
Class A, B, C Fires

Connectivity Type
4-20 mA Output, Relay Contacts, RS485 Modbus

Working Temperature
-40C to +85C

Voltage
24V DC

Control Type
Automatic

Installation Type
Wall or Ceiling Mount

Energy Efficiency Rating
Low Power Consumption

Shape
Cylindrical

Coating Type
Powder Coated

Features
High Immunity to False Alarms, Fast Detection Speed, Robust Construction, Weatherproof Housing, LED Status Indicator

Mounting Type
Surface Mount

Application
Industrial Fire Detection, Oil and Gas Platforms, Warehouses, Petrochemical Plants, Power Plants, Aircraft Hangars

Diameter
110 mm

Maintenance
Low, Self-check/Test Function

Detection Angle
120 degrees horizontal, 90 degrees vertical

Ingress Protection
IP66 / IP67

Cable Entry
2 x M20

Alarm Output
Relay, 4-20 mA, RS485, LED Indication

Response Time
Less than 5 seconds

Spectral Response
Three IR bands (optical filter arrangement)

Sensitivity Levels
Adjustable

Housing Material
Die-cast Aluminum

Weight
Approx. 1.8 kg

Flame Detector Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

Flame Detector About

Unlock an unprecedented level of fire safety with our Triple Infrared (IR3) Flame Detector, available for a limited time! Capitalise on flawless fire detection with a response time of less than 5 seconds and excellent coverage up to 100 square meters. Engineered with robust die-cast aluminum housing, IP66/IP67 ingress protection, and low maintenance requirements, it ensures enduring reliability in industrial environments-from oil and gas platforms to power plants. Adjustable sensitivity, high immunity to false alarms, and versatile connectivity make it the ultimate choice for rapid and accurate fire detection. Act now for unmatched performance!

Flame Detector: Versatile Advantage for Industrial Protection

Our IR3 Flame Detector boasts a fast detection speed and excellent immunity to false alarms, making it invaluable in a variety of hazardous industrial environments. Used widely by warehouses, oil and gas facilities, petrochemical plants, and power stations, it provides critical, early warning for both specific and general fire detection needs. Designed for flawless operation in demanding locations, it excels in both Class A, B, and C fire detection, ensuring robust and continuous safety coverage.

Flame Detector: Payment Terms, Supply, and Sample Policy

Purchasing our flame detector is seamless: we require a formal purchase order and charge in line with current market value. Supply ability is optimized to support bulk orders, ensuring timely delivery across India. Upon request, samples can be provided, usually at nominal charges, allowing customers to evaluate product quality before full commitment. Transparent payment terms and flexible supply arrangements make us a trusted dealer, manufacturer, and service provider.

FAQ's of Flame Detector:

Q: How does the triple infrared (IR3) technology benefit industrial fire detection?

A: The IR3 technology enhances the detector's sensitivity and reliability, allowing it to rapidly sense and respond to various flames while minimizing false alarms. This ensures superior fire safety across complex industrial environments.

Q: What types of fires can this flame detector identify?

A: This detector is designed to detect Class A (solid), B (liquid), and C (gas) fires, making it suitable for a wide range of industrial and commercial applications.

Q: Where can the flame detector be installed for optimal effectiveness?

A: It can be surface-mounted on walls or ceilings in areas requiring vigilant fire monitoring, including warehouses, oil and gas platforms, aircraft hangars, and other hazardous sites.

Q: When should the self-check/test function be performed?

A: While the detector features automated self-checks, it is advisable to perform manual tests periodically according to your facility's safety and maintenance schedule, ensuring peak performance.

Q: What is the process for acquiring a sample unit?

A: Interested buyers can request a sample by placing a purchase order and covering applicable charges. This allows for firsthand evaluation before making a larger investment decision.
