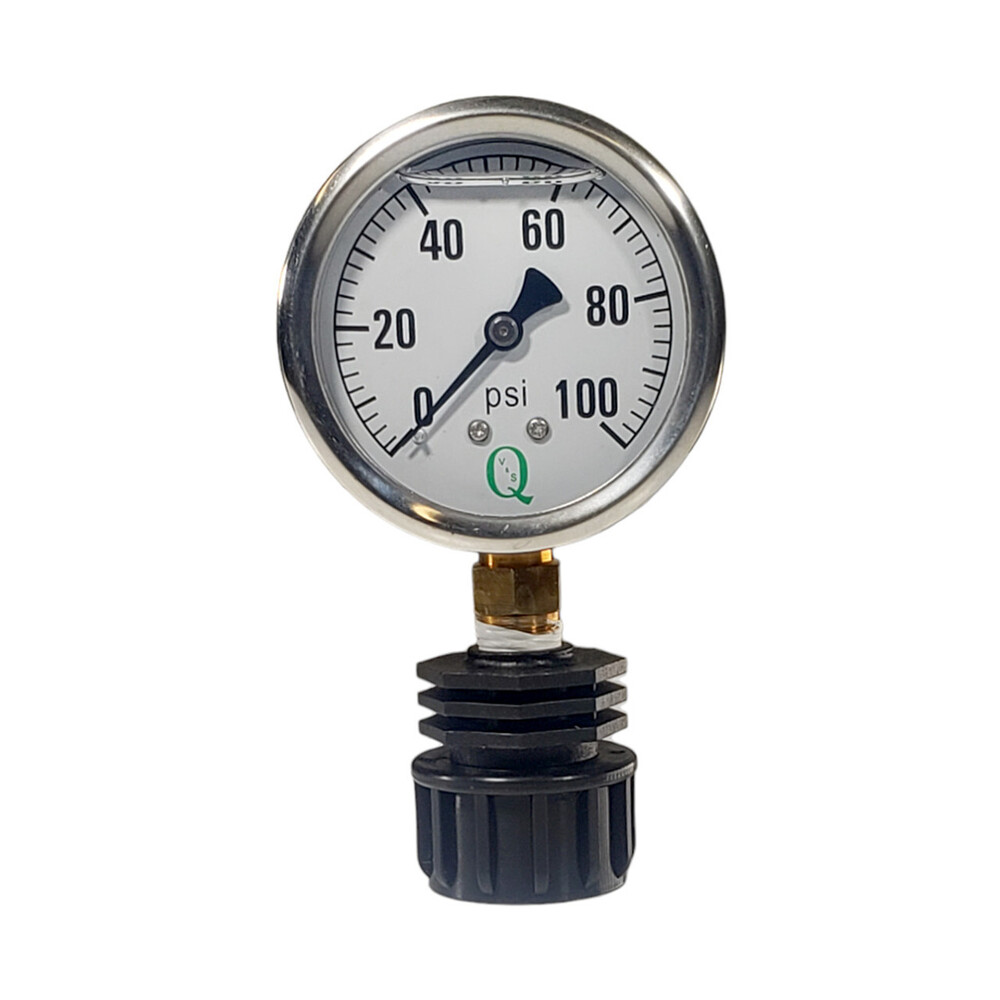

pressure gauges

pressure gauges Specification

Shape
Round

Connectivity Type
Mechanical (No electrical connectivity required)

Mounting Type
Bottom or back connection

Technology
Bourdon Tube Mechanism

Working Temperature
-20C to +60C

Coating Type
Chrome plated / Stainless steel finish

Operating Pressure
Up to 7 kg/cm2

Control Type
Analog

Installation Type
Panel Mount / Direct Mount

Features
High accuracy, Clear dial, Corrosion-resistant case, Compact design

Application
Pressure measurement in industrial systems, water, oil, air, and gas applications

Diameter
100 mm

Pressure
0-7 kg/cm2 (0-100 psi)

Connection Size
1/4" BSP (Standard), others optional

Movement Material
Brass

Applicable Fluids
Air, Water, Oil, Gas (Non-corrosive fluids)

Accuracy Class
1.6% of FSD

Seal Type
Gasketed for dust and moisture resistance

Case Material
Metal / Stainless Steel

Pointer Material
Black-painted aluminum

Dial Material
Aluminum with white background and black markings

Window Material
Acrylic / Glass

pressure gauges Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

pressure gauges About

Grab this celebrated and splendiferous range of pressure gauges at a special Price Cut during our Clearance event! The latest models feature a valuable blend of durability and precision, showcasing an aluminum dial with a white background and bold black markings for superior visibility. With a corrosion-resistant metal or stainless steel case, acrylic or glass window, and a black-painted aluminum pointer, these gauges promise high accuracy (1.6% of FSD), robust sealing against dust and moisture, and versatile connections. Designed for India's diverse industrial, water, oil, air, and gas measurement needs, these gauges guarantee reliability for both retailers and service providers.

Precision Performance in Tough Applications

Our pressure gauges offer efficient pressure measurement using the renowned Bourdon Tube mechanism, ideal for industrial systems as well as air, water, oil, and non-corrosive gas applications. Featuring a high-visibility dial, corrosion-resistant case, and gasketed seal for dust and moisture protection, each gauge is manufactured with quality materials including chrome-plated or stainless steel finishes. The analog control system ensures accurate readings (1.6% FSD) for operating pressures up to 7 kg/cm2, supporting robust performance in demanding environments.

Sample Availability, Secure Packaging, and Simple Order Completion

Samples are available upon request, allowing clients to assess quality and compatibility before large-scale orders. Each pressure gauge is meticulously packed with protective materials to ensure safe and undamaged drop-off, whether via direct delivery or scheduled shipment. Order completion is efficient, with flexible payment terms offered for your convenience. We support our clients with transparent packaging details and reliable delivery timelines, streamlining your purchasing and installation process from start to finish.

FAQ's of pressure gauges:

Q: How can I order these pressure gauges in bulk for my industrial application?

A: Bulk orders can be placed directly through our dealer, manufacturer, supplier, retailer, or wholesaler network in India. You can contact us via our inquiry channels, and we will guide you through product selection, packaging requirements, payment, and delivery scheduling.

Q: What materials are used in the construction of these pressure gauges?

A: These gauges are constructed using aluminum dials, metal or stainless steel cases, acrylic or glass windows, black-painted aluminum pointers, and brass movement mechanisms. Each unit is gasketed for dust and moisture resistance and coated with chrome-plated or stainless steel finishes.

Q: When is a pressure gauge with a 1/4" BSP connection size most suitable?

A: A 1/4" BSP connection size is standard and most suitable for typical installations in industrial systems, water lines, oil pipelines, and non-corrosive gas applications where reliable, robust connectivity and easy mounting are important.

Q: Where can these pressure gauges be installed?

A: These gauges are designed for both panel mount and direct mount installations, with either bottom or back connections. They are ideal for use in factories, industrial plants, utility services, and mechanical systems requiring analog pressure reading.

Q: What are the benefits of the analog Bourdon Tube mechanism in these gauges?

A: The analog Bourdon Tube mechanism provides high accuracy, reliability, and easy-to-read pressure measurements without requiring electrical connectivity, making these gauges ideal for remote or challenging environments.
