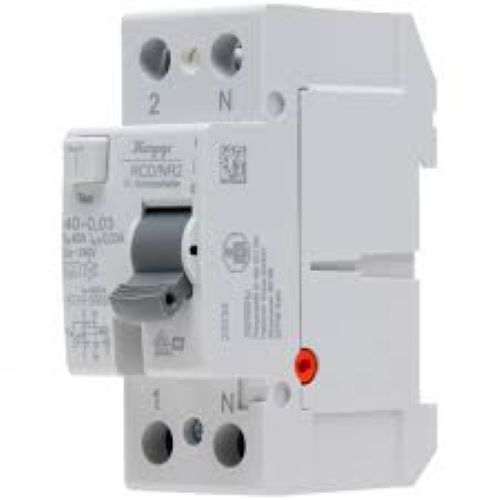

Residual Current Devices (RCDS)

Residual Current Devices (RCDS) Specification

Control Type
Manual Reset

Shape
Rectangular

Connectivity Type
Panel Mounted, Electrical Connections via terminal screws

Coverage Area
Depends on Electrical Network

Coating Type
Insulated Plastic Housing

Mounting Type
DIN Rail

Working Temperature
-5C to +40C

Installation Type
DIN Rail Mounting

Color
White

Features
High sensitivity, Quick response, Compact design, Test button, Easy installation

Voltage
230/240V AC, 415V AC (three-phase)

Technology
Electromechanical

Application
Protecting electrical circuits against earth leakage currents

Capacity
Varies by model (commonly 25A, 40A, 63A, 100A)

Tripping Time
<300 ms

Electrical Life
4,000 Cycles

Rated Current
16A, 25A, 32A, 40A, 63A, 100A (models vary)

Earth Leakage Protection Sensitivity
High

Rated Residual Operating Current (In)
30mA, 100mA, 300mA

Humidity Range
Up to 95% RH (non-condensing)

Terminal Connection Type
Screw Terminal

Endurance
10,000 operating cycles

Accessories
Test Button Provided

Mechanical Life
10,000 Cycles

Frequency
50Hz

Number of Poles
2 Pole / 4 Pole options available

Color
White or Gray (as per manufacturer design)

Residual Current Devices (RCDS) Trade Information

Minimum Order Quantity
20 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

About Residual Current Devices (RCDS)

Don't let electrical risks linger-buy our scarce range of Residual Current Devices (RCDS), engineered with uncommon quality and astounding performance. Perfect for protecting your circuits against unpredictable earth leakage, these RCDS models offer rated currents from 16A to 100A, with ultra-high sensitivity (choose from 30mA, 100mA, 300mA). Get robust endurance with up to 10,000 mechanical cycles, fast tripping at under 300ms, and manual reset for total control. Purchase today from trusted dealers, suppliers, and manufacturers in India-for insulation excellence that's difficult to find elsewhere!

Versatile Usage for Diverse Electrical Networks

Residual Current Devices (RCDS) are ideal for residential, commercial, and industrial usage, providing unparalleled safety against earth leakage currents. Suitable for both single-phase and three-phase systems, these electromechanical devices are essential for panel-mounted installations in distribution boards. Their rapid response and compact construction serve as a competitive advantage, ensuring swift protection while saving space. Built with high-quality insulated plastic housing, these RCDS units are trusted for their longevity, making them indispensable in any modern electrical setup.

Flexible Payment and Efficient Shipment Solutions

Our Residual Current Devices (RCDS) are available for purchase under customizable payment terms to meet your enterprise's requirements. Shipment is processed efficiently and goods are handed over via reliable transport to ensure safety and prompt delivery. We mainly serve export markets across Asia, Europe, and Africa, shipping primarily through major Indian FOB ports. Whether you're a dealer or wholesaler, rest assured-our team oversees the entire process, from order confirmation to the secure arrival of your goods.

FAQ's of Residual Current Devices (RCDS):

Q: What is the primary benefit of using a Residual Current Device (RCDS)?

A: The primary benefit of using an RCDS is enhanced protection against hazardous earth leakage currents, reducing the risk of electrical shocks and fire in both residential and industrial environments.

Q: How do I choose the right RCDS model for my application?

A: To select the ideal RCDS, consider the required rated current (from 16A to 100A), residual operating current sensitivity (30mA/100mA/300mA), and whether your system requires a 2-pole or 4-pole configuration. Check your network's voltage and coverage area as well.

Q: What is the typical process for installing an RCDS?

A: Installation involves securely mounting the RCDS on a DIN rail, connecting the terminals using panel screws, and utilizing the test button to verify functionality. Always follow manufacturer guidelines and ensure proper earthing during setup.

Q: Where can I purchase these RCDS units in India?

A: You can purchase RCDS units from authorized dealers, manufacturers, suppliers, traders, and wholesalers across India, ensuring dependable after-sales service and genuine quality.

Q: What features distinguish these RCDS models from common alternatives?

A: Our RCDS models offer high sensitivity, quick tripping response (<300 ms), robust mechanical endurance, and easy-to-use test buttons, all within a compact, insulated plastic housing for safe installation and long-term reliability.

Q: When should I perform the test on my RCDS device?

A: Testing should be performed regularly-ideally once a month-using the provided test button to ensure the device's continued protective function and reliable operation.
