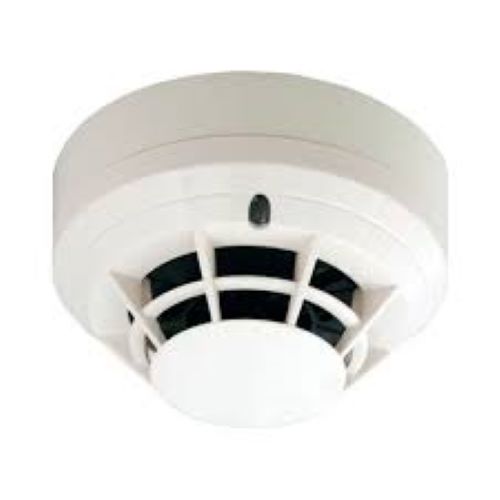

Smoke Detecter

Smoke Detecter Specification

Connectivity Type
Wired or battery operated

Fire Class
A, B, C (general smoke detection)

Operating Pressure
Standard atmospheric

Installation Type
Ceiling mounted

Working Temperature
-10C to +50C

Voltage
9V DC (battery) or 220V AC (wired)

Control Type
Automatic

Technology
Photoelectric smoke sensor

Coating Type
Fire-retardant plastic

Energy Efficiency Rating
Low power consumption

Weight
97 Grams (g)

Shape
Round

Mounting Type
Surface mount

Coverage Area
Up to 30 square meters per detector

Features
Genuine And Fast Response

Application
Fire alarm system for residential, commercial, and industrial buildings

Diameter
100 mm (4 inches)

Pressure
Atmospheric

Material
ABS plastic housing

Color
White

Weight
Approx. 90 grams (with battery)

Compliance Standards
ISI marked, conforms to BIS standards

Dimensions
100 mm x 40 mm

Response Time
Within 15 seconds of smoke detection

Alarm Sound Level
>85 dB at 3 meters

Battery Life
Up to 1 year (alkaline 9V battery)

Sensor Life
10 years typical

Smoke Detecter Trade Information

Minimum Order Quantity
20 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

About Smoke Detecter

Honeywell HM PSE/B501 Smoke Detector uses the central photoelectric smoke detector thermal assistance to provide enhanced false alarm immunity and faster response to a large variety of incipient fires. The plug-in unit combines two different sensing components to act as a single device, which is operated by embedded software. The optical-thermal detector complies with EN54-7, a fixed temperature of 58 C, and the rate of thermal assistance increases consistent with EN54-5. The thermal detection method incorporates the thermistor technology with a linear temperature response corrected by the program. In locations where normal daytime actions can potentially trigger undesirable alarms, the detector can be configured to work in a heat-only mode, automatically returning to full photothermal activity during unoccupied hours. The sensing elements of the optical-thermal HM-PTSE detector are adjustable so that the sensitivity thresholds of each element can be adjusted by the panel which offers the ability to customize the system to change the area it is Secure. The detector has two integrated red LEDs that provide a local visual indication of system status at 360 .

Fast, Reliable Smoke Sensing

Utilizing a photoelectric sensor, this smoke detector swiftly identifies the presence of smoke from various fire types (A, B, C). Once smoke is detected, the alarm triggers in under 15 seconds, ensuring prompt warnings for occupants. It operates efficiently in a wide range of temperatures, providing steadfast fire protection for all types of buildings.

Long-Lasting and Efficient Design

With a sensor life of up to 10 years and low power consumption, this smoke detector minimizes maintenance while maximizing reliability. Its alkaline 9V battery lasts up to a year, and the option to wire directly into 220V AC power ensures uninterrupted operation. The durable ABS plastic body and fire-retardant coating further enhance safety.

Easy Installation and Wide Coverage

This detector is designed for simple, surface, or ceiling mounting. Its round, compact design (100 mm diameter) fits unobtrusively in any space, providing coverage of up to 30 square meters per unit. Suitable for homes, offices, industrial sites, and more, it blends seamlessly into a variety of environments.

FAQ's of Smoke Detecter:

Q: How does the photoelectric sensor in this smoke detector work?

A: The photoelectric sensor inside the detector uses a light source and a photodiode. When smoke enters the chamber, it scatters the light, triggering the sensor to activate the alarm within 15 seconds, responding quickly to slow-smoldering fires as well as fast-flaming ones.

Q: What is the process for installing this smoke detector?

A: To install, mount the detector on the ceiling using the included hardware, in a location central to the area you wish to monitor (up to 30 m2 coverage per unit). Then connect the power source-either a 9V battery or wiring it into 220V AC-and ensure it is ISI marked for standards compliance.

Q: When should I replace the battery in my smoke detector?

A: Replace the alkaline 9V battery once a year or sooner if you hear a low battery warning chirp. For continuous safety, it's recommended to schedule battery replacement on a specific annual date, such as when changing clocks for daylight savings.

Q: Where is the optimal place to use this smoke detector?

A: This detector is ideal for ceiling installation in homes, offices, factories, or industrial buildings, as it is designed to respond to fires of classes A, B, and C. For maximum protection, avoid installing near ventilation ducts or cooking appliances to prevent false alarms.

Q: What are the benefits of using an ISI-marked, BIS-compliant smoke detector?

A: An ISI-marked, BIS-compliant detector meets stringent Indian safety standards, ensuring reliable performance, reduced false alarms, and verified durability-providing added peace of mind for users throughout its 10-year sensor lifespan.

Q: Can this smoke detector be used in large spaces, and how many will I need?

A: Each detector covers up to 30 square meters. For larger spaces, install additional units, placing them evenly to ensure comprehensive smoke detection throughout the property. Consult manufacturer guidelines for precise placement in expansive or multi-room settings.
