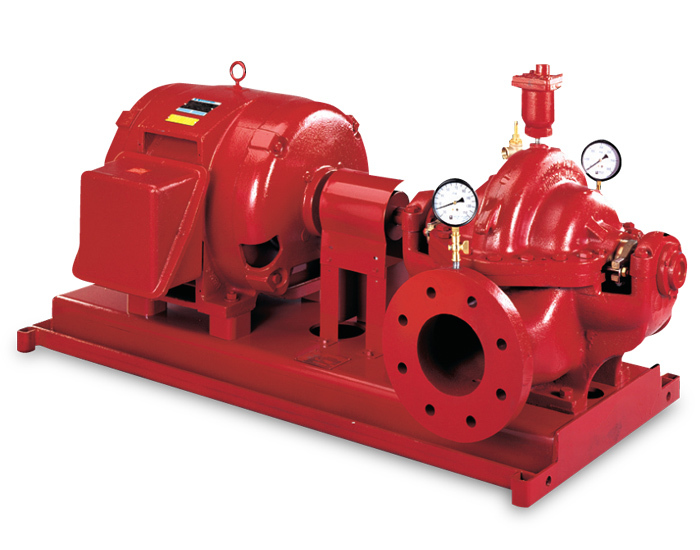

fire pump

fire pump Specification

Voltage
415V AC, 3 Phase, 50Hz

Fire Class
Class A, B, C

Mounting Type
Baseplate mounted

Shape
Horizontal cylindrical

Features
Corrosion resistance, high efficiency, compact structure, low noise, easy maintenance

Energy Efficiency Rating
High efficiency motor (IE2/IE3 rated)

Working Temperature
0C to 80C

Technology
Centrifugal Pump, Electric Motor Driven

Connectivity Type
Piping/Flange fittings

Control Type
Automatic/Manual

Coverage Area
Up to 40,000 sq. ft. (varies by system)

Operating Pressure
Up to 120 psi

Fire Extinguisher Type
Pump Set (not fire extinguisher, but suitable for fire protection systems)

Coating Type
Epoxy powder coated

Installation Type
Horizontal floor mounted

Application
Fire fighting, emergency water supply, hydrant and sprinkler systems, industrial and commercial buildings

Max Flow Rate
2280 Liters/Minute

Capacity
500-3000 LPM (depends on model)

Diameter
65 mm

Pressure
8.2 Bar

Engine Option
Optional diesel engine drive

Applicable Standards
IS 12469, NFPA 20, UL/FM (on request)

Suction Size
100 mm

Noise Level
< 80 dB at 1 meter

Pump Material
Cast iron/ductile iron casing, stainless steel shaft

Motor Power
22 kW to 90 kW (as per flow requirement)

Discharge Size
80 mm

Test Pressure
Up to 15 bar

Impeller Type
Closed/Enclosed impeller

Priming System
Self-priming/manual priming

Service Life
Long service life, 50,000+ hours under standard conditions

Protection Class
IP55

Sealing Type
Mechanical seal

fire pump Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

About fire pump

The pump draws water from a source, such as a public water main or a static source like a tank or reservoir, and boosts the pressure to meet the system's demand, ensuring adequate water delivery to extinguish fires.

Engineered for Reliability

Built with first-rate materials such as cast iron or ductile iron casing and stainless steel shafts, this fire pump ensures continued operation and durability, even under severe emergency conditions. Its corrosion-resistant, epoxy-coated surface and high-efficiency construction extend service life above 50,000 hours.

Versatile Application Range

This pump is suitable for fire fighting, emergency water supply, and integration with hydrant and sprinkler systems across various commercial and industrial buildings. Its flexible installation options make it a preferred choice for dealers, manufacturers, service providers, and wholesalers in India.

Effortless Operation and Maintenance

Designed for straightforward use, the fire pump supports both automatic and manual control modes. Its compact, horizontal layout simplifies routine inspection, maintenance, and part replacement, ensuring smooth operation at noise levels below 80 dB within the workplace.

FAQ's of fire pump:

Q: How is the fire pump installed and connected to existing fire protection systems?

A: The pump is baseplate mounted on a horizontal floor and connects to fire protection systems using piping or flange fittings. It integrates seamlessly with hydrant and sprinkler systems, managed through automatic or manual controls.

Q: What materials are used in the construction of this fire pump, and how do they benefit operation?

A: The casing is made from cast or ductile iron, and the shaft is fashioned from stainless steel, offering robust corrosion resistance, structural integrity, and suitability for extended service in demanding environments.

Q: When is this fire pump suitable for use in emergency situations?

A: This pump is specifically designed for fire fighting, emergency water supply, and activating hydrant or sprinkler systems, ensuring dependable operation during critical scenarios in both commercial and industrial settings.

Q: Where can this fire pump be used, and what coverage area does it support?

A: Ideal for installation in industrial plants, commercial buildings, warehouses, and similar facilities, the pump can serve areas up to 40,000 sq. ft., though actual coverage may vary depending on the system design.

Q: What is the process for priming the fire pump before use?

A: The pump offers both self-priming and manual priming options, allowing for quick and efficient preparation prior to operation, enhancing readiness during fire emergencies.

Q: How does the pump ensure high energy efficiency during operation?

A: Equipped with IE2 or IE3 rated high-efficiency motors and a centrifugal design, the pump delivers optimal performance with reduced energy consumption, minimizing operating costs without compromising reliability.

Q: What are the main benefits of using this fire pump in my facility?

A: This fire pump provides long-life service (exceeding 50,000 hours), high flow and pressure, quiet operation (<80 dB), easy maintenance, and compliance with leading safety standards, making it a dependable, efficient choice for robust fire protection.
