Specification

  • काम करने का तापमान
  • -20C to 60C
  • इंस्टालेशन टाइप
  • Surface Mount / Epoxy Fixing
  • टेक्नोलॉजी
  • Reflective / Cat Eye
  • माउंटिंग टाइप
  • Surface Mount
  • कनेक्टिविटी टाइप
  • Non-electric / Passive
  • रंग
  • Yellow And Red
  • कोटिंग का प्रकार
  • Acrylic / UV Resistant Paint
  • कवरेज एरिया
  • Per stud: typically 100-150 cm2
  • कंट्रोल टाइप
  • Fixed
  • शेप
  • Rectangular with Raised Profile
  • विशेषताएँ
  • High Reflectivity, Durable Body, Night Visibility
  • एप्लीकेशन
  • Road Safety, Lane Delineation
  • व्यास
  • 100 mm
  • प्रेशर
  • Up to 30 Tons
  • Color
  • Yellow (body), White/Red Reflectors
  • Load Capacity
  • Up to 30,000 kg
  • Life Span
  • 3 to 5 years
  • Reflective Panel
  • Dual sided
  • Water Resistance
  • Yes, IP65 Rated
  • Dimensions
  • 100 mm x 100 mm x 20 mm (LxWxH)
  • Weight
  • 120 - 200 grams
  • Reflector Type
  • Polycarbonate Reflective Lens
  • Material
  • ABS Plastic / Polycarbonate / Aluminum Base
  • Conformity Standards
  • ASTM D4280 / EN 1463-1


Trade Information

  • Minimum Order Quantity
  • 20 टुकड़ाs
  • आपूर्ति की क्षमता
  • प्रति महीने
  • डिलीवरी का समय
  • दिन


About

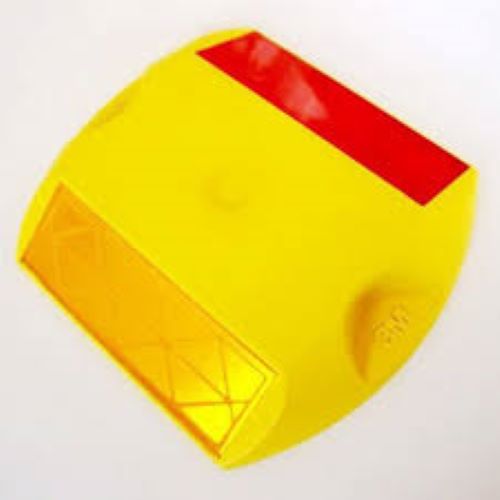

  • Road stud is made of ABS material and designed to bear maximum load.
  • High reflective reflectors molded in PMMA material are fitted on the stud.
  • The reflectors are welded with a ABS base plate through ultrasonic welding process.


Superior Night Visibility and Safety

Equipped with premium polycarbonate reflective lenses on both sides, this road stud ensures excellent night visibility. Its raised rectangular profile and high-reflectivity design help drivers easily identify lanes, especially in low-light or adverse weather conditions. Dual-sided reflectors maximize effectiveness by illuminating from multiple angles, distinctly marking road boundaries and enhancing overall road safety.


Robust Construction and Long-Lasting Performance

Manufactured from sturdy materials like ABS plastic, polycarbonate, or aluminum, the road stud boasts a load capacity of up to 30,000 kg. It withstands heavy traffic and pressure while maintaining its shape and reflectivity. The acrylic or UV-resistant paint coating protects against wear, ensuring continued performance and longevity for 3 to 5 years-even in challenging Indian climates.


Easy Installation and Versatile Application

Designed for hassle-free surface mounting or epoxy fixing, the road stud requires no electrical connectivity, making it a versatile and cost-effective solution. Its IP65-rated water resistance and robust construction allow installation on highways, city roads, parking lots, and other high-traffic areas-perfect for lane delineation and pedestrian safety applications.

FAQ's of Road Stud:


Q: How is this road stud installed on the road surface?

A: The road stud can be installed using surface mounting or epoxy fixing methods. Clean the installation area, apply epoxy adhesive, and press the stud firmly onto the surface. Allow appropriate curing time before exposing it to traffic.

Q: What benefits does this road stud offer for road safety?

A: It provides high visibility at night and in adverse weather, aids lane delineation, and helps prevent accidents. The durable and reflective design ensures optimal guidance for drivers, improving overall safety on highways and urban roads.

Q: What materials make up the body of the road stud?

A: The body is constructed from ABS plastic, polycarbonate, or aluminum, chosen for their durability, impact resistance, and ability to withstand extreme temperatures and heavy loads.

Q: When should these road studs be used for best effectiveness?

A: They are ideal for use in situations requiring enhanced night visibility, under low-light conditions, during fog, or in locations with high traffic volume to delineate lanes and mark hazardous zones.

Q: Where can these road studs be applied?

A: These road studs are suitable for highways, city roads, parking spaces, intersections, and pedestrian areas to provide clear lane demarcation and ensure pedestrian and vehicular safety.

Q: What standards and certifications do these road studs comply with?

A: They conform to ASTM D4280 and EN 1463-1 standards, ensuring quality, performance, and reliability for road applications.
