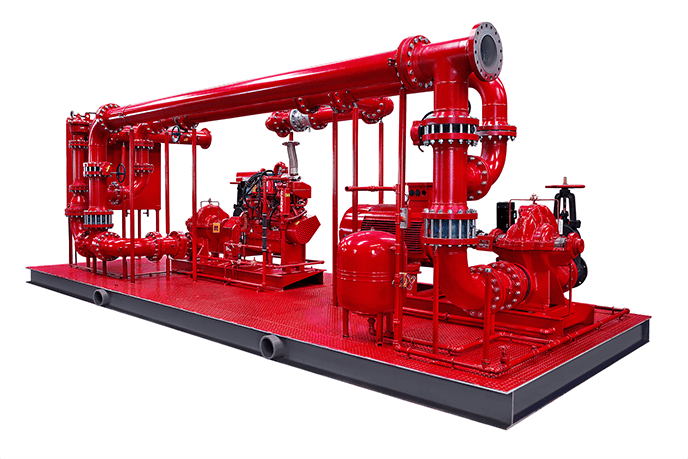

fire sprinkler system fire pump

fire sprinkler system fire pump Specification

Fire Class
Class A, B & C

Working Temperature
Up to 50C

Connectivity Type
Direct Coupled

Mounting Type
Base mounted

Energy Efficiency Rating
High efficiency motor

Fire Extinguisher Type
Water Based

Technology
Centrifugal Pump

Operating Pressure
7-12 Bar

Coating Type
Epoxy coated

Shape
Horizontal split-case

Control Type
Automatic/Manual

Coverage Area
Large commercial and industrial spaces

Voltage
380-415V AC

Features
Corrosion resistant, High efficiency, Rugged construction, Easy maintenance

Installation Type
Horizontal/Vertical

Application
Fire Sprinkler System

Max Flow Rate
750 LPM

Capacity
Depending on application

Diameter
100 mm

Pressure
10 Bar

Priming
Self-priming

Suction Size
100 mm

Motor Power
15 HP

Impeller Material
Bronze

Compliance Standard
IS 12469 / UL Listed / FM Approved

Discharge Size
80 mm

Seal Type
Mechanical seal

Body Material
Cast Iron/SS

Speed
2900 RPM

Test Pressure
1.5 times working pressure

Noise Level
Less than 75 dB

Protection Class
IP55

Pump Type
End Suction/Centrifugal

fire sprinkler system fire pump Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
2-10 Days

fire sprinkler system fire pump About

The pump draws water from a source, such as a public water main or a static source like a tank or reservoir, and boosts the pressure to meet the system's demand, ensuring adequate water delivery to extinguish fires.

High-Performance and Safety-Certified

This fire pump is designed for maximum safety and efficiency, featuring compliance with IS 12469, UL Listing, and FM Approval. Its robust build and high protection class (IP55) make it ideal for demanding fire protection applications in extensive commercial and industrial settings. The pump operates quietly at less than 75 dB, ensuring minimal disruption in sensitive areas, while providing reliable fire suppression for Class A, B, and C fire hazards.

Advanced Engineering and Durable Materials

Constructed with a cast iron or stainless steel body and a bronze impeller, this pump offers exceptional corrosion resistance and longevity. The horizontal split-case and epoxy coating enhance its durability, while the direct-coupled connection and base-mounted design allow for easy installation and maintenance in both horizontal and vertical configurations.

Efficient Performance and Flexible Operation

With a motor power of 15 HP, a capacity tailored to application needs, and a high energy efficiency rating, this fire pump ensures consistent water delivery at up to 750 LPM. Automatic and manual control options, combined with self-priming centrifugal technology, allow for versatile and reliable operation in emergency situations. The design supports large-scale coverage and delivers prompt fire protection where it matters most.

FAQ's of fire sprinkler system fire pump:

Q: How does the fire sprinkler system fire pump ensure reliable operation during an emergency?

A: The pump features self-priming centrifugal technology, a high-efficiency 15 HP motor, and automatic/manual controls to guarantee immediate and consistent water flow during emergencies. Its design complies with IS 12469, UL, and FM standards for enhanced safety and assurance.

Q: What are the key benefits of using a bronze impeller and epoxy-coated cast iron/SS body?

A: A bronze impeller offers superior corrosion resistance and long-lasting performance, even in challenging conditions. The cast iron or stainless steel body coated with epoxy further extends the pump's lifespan by preventing rust and wear, making it ideal for frequent or continuous use in fire protection.

Q: When should this fire pump be considered for installation?

A: This pump is recommended for installation in large commercial or industrial spaces requiring dependable fire protection, especially where extensive coverage for Class A, B, and C fires is necessary. It is suitable for new projects and upgrades to existing systems.

Q: Where can the fire sprinkler system fire pump be installed?

A: Thanks to its flexible base-mounted, horizontal or vertical installation, this pump can be situated in various mechanical rooms or pump houses within commercial and industrial premises, adapting to different layout constraints and requirements.

Q: What is the typical process for testing the fire pump's performance?

A: The fire pump is tested at a pressure 1.5 times its working pressure to ensure system integrity. Regular maintenance checks and performance testing are recommended to uphold compliance and functionality, which can be coordinated with the manufacturer, dealer, or service provider.

Q: How can users benefit from the pump's automatic and manual control options?

A: Automatic controls enable rapid, hands-free activation during fire emergencies, ensuring swift response, while manual controls allow trained personnel to override the system for testing or in specific scenarios-offering flexibility and reliability.

Q: What maintenance practices help extend the lifespan of this fire pump?

A: Routine inspection of seals, bearings, and electrical connections; monitoring operating temperature; and periodic performance testing are essential. The easy-maintenance design and rugged construction reduce downtime and simplify servicing for dealers, manufacturers, and service providers.
